1/2″ to 4″ Rigid Conduit Steel Compression Fittings Made in the USA
RainTight Option (RT Series), Wet Locations, Concrete Tight, Direct Burial
Save Installation Costs, Improve Your Application with AMFICO
Guaranteed Product Value to EXCEED Your Expectations. . . NOT Your Budget!
2 1/2″ to 4″ Stock One Product for EMT, Rigid, & Aluminum Conduit including Rain Tight
Twice the Strength & Durability of Malleable Iron
Take Up Less Space Low Profile Design 1/3 the Weight of MI
Self Aligning Fittings with Conduit Center Line
EZ Torque Compression with Flat Full Hex Surfaces
Precision Machined Threads Lock Tight with Less Effort
Rigid Conduit Coupling 1/2″ – 4″ Steel Made in the USA
2 1/2″ to 4″ UL Listed & Approved for Steel & AL EMT, Rigid / IMC
Rigid Conduit Connector 1/2″ – 4″ Steel Made in the USA
2 1/2″ to 4″ UL Listed & Approved for Steel, AL EMT, Rigid / IMC
Option of Factory Installed Insulated Bushing *
Rigid Conduit Coupling 1/2″ – 4″ Steel Made in the USA
RT Series Rain TIGHT, Wet Locations, Direct Burial
2 1/2″ to 4″ UL Listed & Approved for EMT, Rigid / IMC & AL Conduit

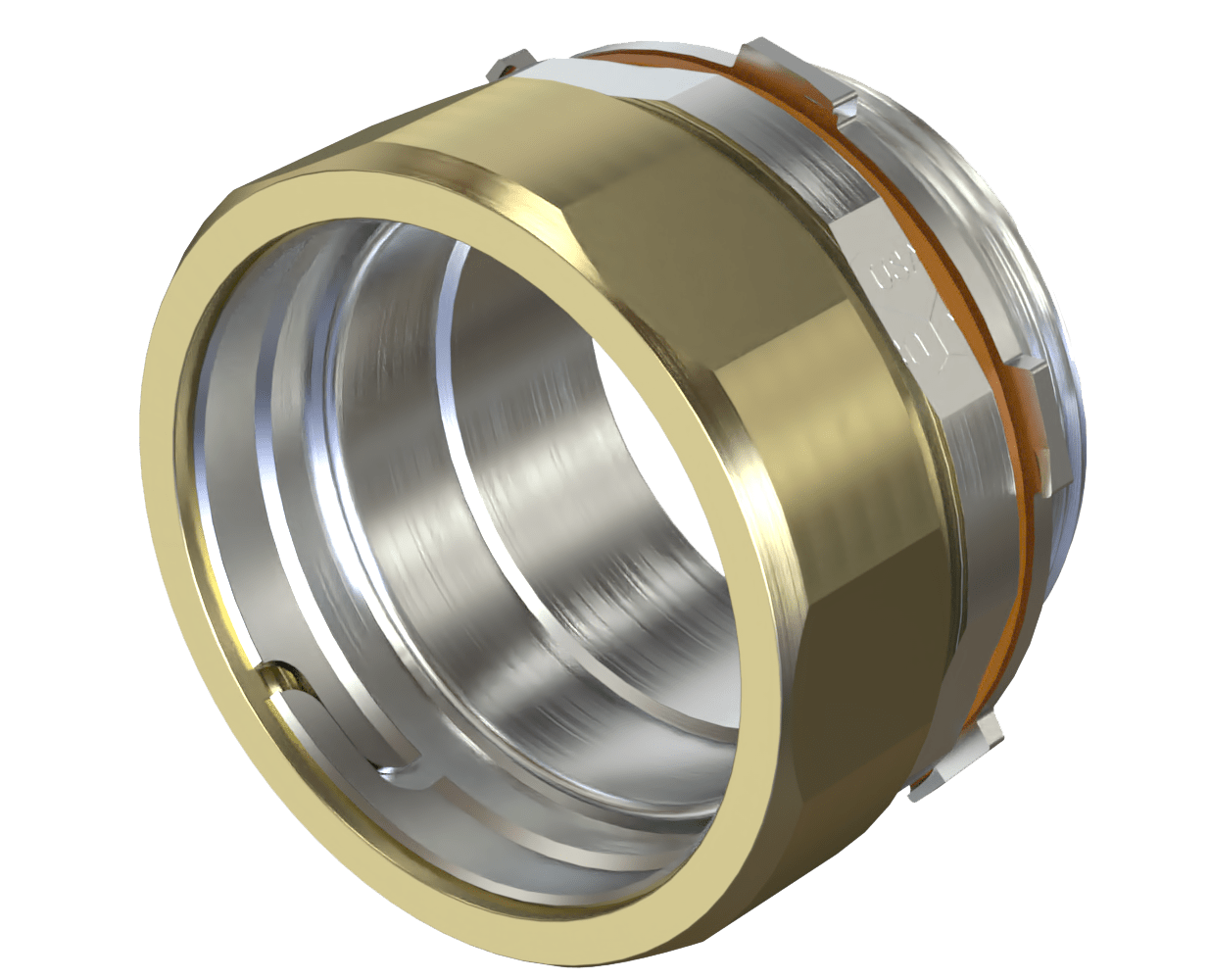

Rigid Conduit Connector 1/2″ – 4″ Steel Made in the USA
RT Series Rain TIGHT, Wet Locations, Direct Burial
2 1/2″ to 4″ UL Listed & Approved for EMT, Rigid / IMC & Aluminum Conduit

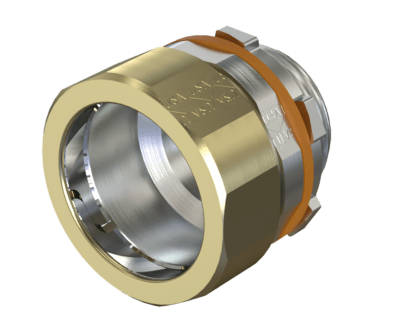

Close Up of Our RainTIGHT, Wet Locations – (RT series)
Rain-TIGHT, Wet Locations Rigid Fittings – RT Series
Our NT – RT Series and ERC- RT Series are compression-type fittings designed to join unthreaded steel rigid conduit to a box or enclosure in locations such as parking garages, loading docks, warehouses, and transit facilities, allowing electricians to save time when installing threadless, rigid conduit in a wet location. AMFICO’s RainTIGHT fittings come in ½ -in. Through 4-in. trade sizes. All products are cULus-listed to ensure code compliance. Precision-machined solid steel fittings will accept full torque values to provide environmental sealing and compensate for misaligned pipe without cross-threading.
Cat Numbers & Dimensions
.
Click on Any Image to Enlarge View
Configurations:
Trade Sizes: 1/2″ to 4″
2 1/2″ – 4″ UL Listed & Approved for Use with
Rigid,IMC, EMT & Aluminum Conduit including Rain Tight
Material Construction: Alloy Steel, Zinc Plated with Chromate Finish
Solid Steel Construction, Fully Precision Machined
** Galvanized Plating Option Available
* Connectors Available With or Without Insulated Throat Bushing 105° C Rating
Bushing Material has a UL Flammability Rating of UL94V1
All Connectors Include a Steel Grade Locknut
RT Series Furnished with Sealing Washer & Steel Locknut and
Gold-Tone Plated Nuts for EZ Identification for Inspectors
Features:
Low Profile Design Conforms to Conduit for Tight Spaces
Twice The Strength & Durability of Die Cast, MI, & Tubular
Flat Hex Surfaces Precision Cut Threads for EZ Torque
Compliances:
2 1/2″ – 4″ UL Listed & Approved for Rigid, IMC, EMT, & ALUMINUM Conduit
UL Listed File E93605
NEMA Standard FB1
Federal Standard A-A-50553
UL Standards: 514B, 467
* Optional: Insulated Throat Bushing 105°C Rated Add Suffix “B” to Cat #
Bushing Material has a UL Flammability Rating of UL94V1
RT Series UL Listed for Rain Tight, Wet Locations &
Furnished with
Gold-Tone Nuts for EZ Identification
RT Series Suitable for Direct Burial
Certified for MIL-STD 810 Sinusoidal Vibrations
CSA Standard: C22.2 No. 18F
RoHS Compliant
REACH Compliant
CA Prop 65 Compliant
UNSPSC 39121434
